Brass Ball Valve

D2015

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Ball valves

Inquiry

Product description

Commodity name: Brass Ball Valve
Commodity ID: D2015

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

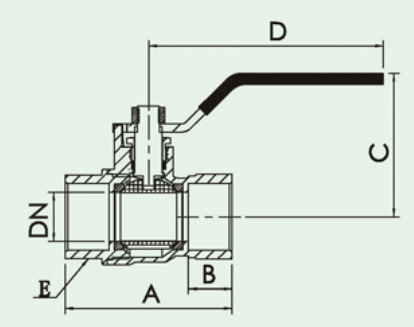

D2015

SIZE	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂	21/2＂	3＂	4＂
A	55	61	74.5	84	89	104
B	15.5	16	19	19.5	19.5	20
C	50	50	65	65	70	85
D	85	85	120	120	135	135
E	24.6	30.5	37	47	53	66
DN	12.7	18.5	24	31	37	49.5

Keywords： Brass Ball Valve

Brass Welding Ball Valve

Brass Flanged Ball Valve
