Brass Flanged Ball Valve
D2016
• Nominal pressure：1.6MPa
• Working medium：Water.Oil.Steam
• Working temperature：-20℃≤t≤150℃
• Pipe thread to iSO 228
Category：
- Product description
-
- Commodity name: Brass Flanged Ball Valve
- Commodity ID: D2016
• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228
Technical specilication
• Nominal pressure：1.6MPa
• Working medium：Water.Oil.Steam
• Working temperature：-20℃≤t≤150℃
• Pipe thread to iSO 228

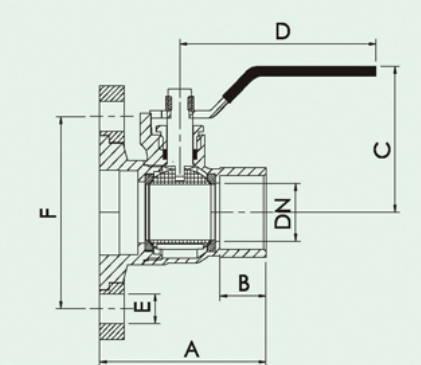

D2016
SIZE 1/2＂ 3/4＂ 1＂ 11/4＂ 11/2＂ 2＂ 21/2＂ 3＂ 4＂ A 63 71.9 84 95 114 B 16 15 19 19.5 20 C 50 50 65 75 85 D 85 80 120 135 135 E 12.7 12.7 12.7 12.7 12.7 F 79.4 79.4 79.4 79.4 87.3 DN 18.5 24 31 37 49.5
Keywords： Brass Flanged Ball Valve
