Brass Welding Ball Valve

D2014

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Ball valves

Inquiry

Product description

Commodity name: Brass Welding Ball Valve
Commodity ID: D2014

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

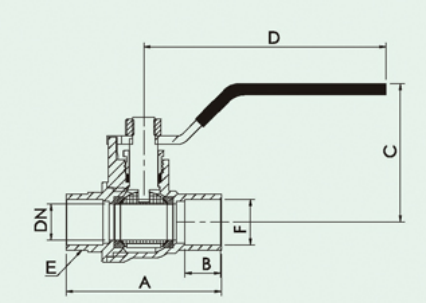

D2014

SIZE	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂	21/2＂	3＂	4＂
A	55	72	88	97	108	136
B	13	19	23	25	28	34
C	50	50	65	65	75	85
D	85	88	120	120	135	135
E	19.6	26	33	39	46	58.5
F	16.02	22.35	26.7	30.05	41.4	54.15
DN	12.7	18.5	24	31	37	49.5

Keywords： Brass Welding Ball Valve

Brass Beer Valve

Brass Ball Valve
