Bronze Gate Valve

D1018

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Gate valves

Inquiry

Product description

Commodity name: Bronze Gate Valve
Commodity ID: D1018

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

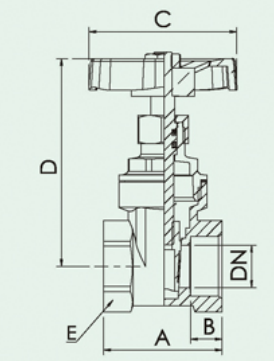

D1018

SIZE	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂	21/2＂	3＂	4＂
A	38	41	44	48	54	62	75	75	82
B	10	10.5	11	12	13	14	17.5	18	19
C	50	50	60	70	70	80	110	110	130
D	68	74	81	100	110	130	168	190	240
E	28	33	36	47	53	66	84	95	121
DN	13.5	19	23	31	35.5	45	60	70	88
