Brass Gate Valve

D1019

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Gate valves

Inquiry

Product description

Commodity name: Brass Gate Valve
Commodity ID: D1019

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

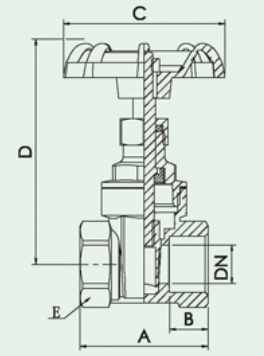

D1019

SIZE	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂	21/2＂	3＂	4＂
A	42	47	51.5	59	64	68
B	13	13.5	14.5	17	18	18.5
C	55	55	60	70	70	85
D	74	78	88	105	110	135
E	26	32.5	37.5	46.5	55.5	65.5
DN	13	17	21	27	35	45

Keywords： Brass Gate Valve

Bronze Gate Valve

Embedded Rod Lock-Controlled Copper Gate Valve
