Bronze Gate Valve
D1017
• Nominal pressure：1.6MPa
• Working medium：Water.Oil.Steam
• Working temperature：-20℃≤t≤150℃
• Pipe thread to iSO 228
Category：
- Product description
-
- Commodity name: Bronze Gate Valve
- Commodity ID: D1017
• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228
Technical specilication
• Nominal pressure：1.6MPa
• Working medium：Water.Oil.Steam
• Working temperature：-20℃≤t≤150℃
• Pipe thread to iSO 228
D1017

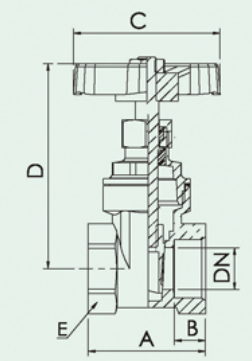

SIZE 1/2＂ 3/4＂ 1＂ 11/4＂ 11/2＂ 2＂ 21/2＂ 3＂ 4＂ A 30 41 45 50.5 51 60 66 84 82 B 10 11 12 12 12 15 16 21 19 C 50 50 60 60 70 70 100 110 130 D 70 72 100 95 108 130 160 185 225 E 24 30 36 46 51 64.5 81.5 94 120.5 DN 13 15 19 26 33 42 60 67 90
Keywords： Bronze Gate Valve
