Brass Gate Valve

D1014

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Gate valves

Inquiry

Product description

Commodity name: Brass Gate Valve
Commodity ID: D1014

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

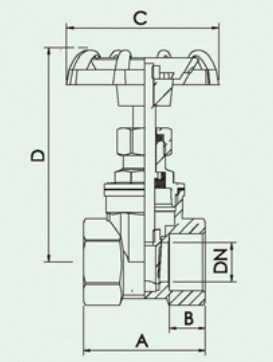

D1014

SIZE	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂	21/2＂	3＂	4＂
A	40.5	41.5	48
B	11	11	12
C	55	55	60
D	70	73	85
E	24.5	31.5	39
DN	12.5	15	20

Keywords： Brass Gate Valve

Brass Gate Valve
