Brass Gate Valve

D1015

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Gate valves

Inquiry

Product description

Commodity name: Brass Gate Valve
Commodity ID: D1015

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

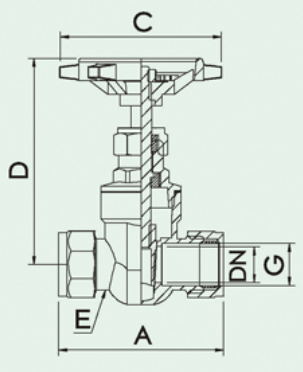

D1015

SIZE	15	18	22	28	35	42	54
A	62		72	82
C	58		65	65
D	75		85	102
E	18.2		25	32
G	15.2		22.2	28.2
DN	13		19	104

Keywords： Brass Gate Valve

Brass Gate Valve
