Brass Gate Valve

D1022

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Gate valves

Inquiry

Product description

Commodity name: Brass Gate Valve
Commodity ID: D1022

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

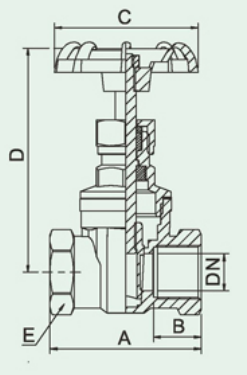

D1022

SIZE	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂	21/2＂	3＂	4＂
A	57	62	70	80	88	95	117	140	166
B	18	19	22	26	28	30	35	35	41
C	55	55	61	80	85	85	110	110	125
D	90	93	108	132	140	153	190	210	270
E	28	34	40	51	57	70	85	100.5	126
DN	14	20	25	32	40	49	65	77	99

Keywords： Brass Gate Valve

Embedded Rod Lock-Controlled Copper Gate Valve
