Catalog

+

Brass Ball Valve

D2011

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228
Category：

Ball valves

Inquiry
  • Product description
    • Commodity name: Brass Ball Valve
    • Commodity ID: D2011

    • Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

    Technical specilication

    • Nominal pressure：1.6MPa

    • Working medium：Water.Oil.Steam

    • Working temperature：-20℃≤t≤150℃

    • Pipe thread to iSO 228

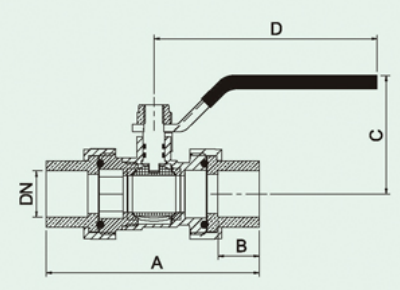

    D2011

    c

    SIZE 20 25 32
    A 88 95 108
    B 17 18 21
    C 47 56 63
    D 98 98 115
    DN 19 24 31

Keywords： Brass Ball Valve
