Bronze Stop Valve

D3001

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Stop valves

Inquiry

Product description

Commodity name: Bronze Stop Valve
Commodity ID: D3001

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

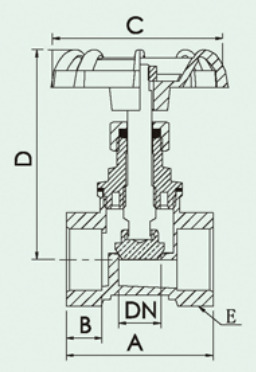

D3001

SIZE	1/4＂	3/8＂	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂	4＂
A			45	50.5	67	74	83.5	102
B			11.5	12	15	16	17.5	21
C			55	55	60	80	85	100
D			65	67	78	105	115	130
E			25.4	32	38.5	48	54	67
DN			13	15.5	17.5	27	32.5	37

Keywords： Bronze Stop Valve
