Bronze Stop Valve

D3003

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Stop valves

Inquiry

Product description

Commodity name: Bronze Stop Valve
Commodity ID: D3003

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

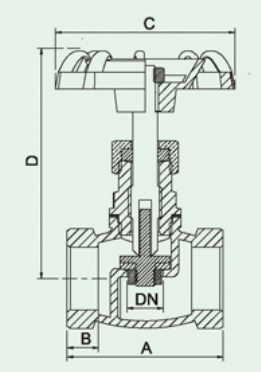

D3003

SIZE	1/4＂	3/8＂	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂
A			47	52	62	71	80	92
B			12	14	16	17	18	20
C			55	55	60	70	80	100
D			68	75	86	92	115	135
E			27	33	41	50	56	70
DN			14	14	19	24	31	37.5

Keywords： Bronze Stop Valve

Bronze Stop Valve

Brass Stop Valve
