Brass Stop Valve
D3007
• Nominal pressure：1.6MPa
• Working medium：Water.Oil.Steam
• Working temperature：-20℃≤t≤150℃
• Pipe thread to iSO 228
Category：
- Product description
-
- Commodity name: Brass Stop Valve
- Commodity ID: D3007
• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228
Technical specilication
• Nominal pressure：1.6MPa
• Working medium：Water.Oil.Steam
• Working temperature：-20℃≤t≤150℃
• Pipe thread to iSO 228

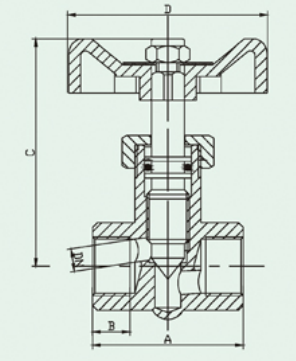

D3007
SIZE 1/8＂ 1/4＂ 3/8＂ A 32 32 40 B 8 8 11 C 48 51 47 D 42 42 42 DN 3.5 5 5.5
Keywords： Brass Stop Valve
