Home page

Catalog

Brass Fire Valve

D3005

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Stop valves

Inquiry

Product description

Commodity name: Brass Fire Valve
Commodity ID: D3005

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

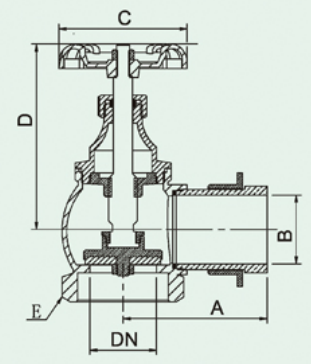

D3006

SIZE	11/4＂	11/2＂	2＂	21/2＂	3＂	4＂
A		75	90	110
B		31.5	43	57
C		85	100	110
D		108	128	150
E		54	66	83
DN		32	41.5	50

Keywords： Brass Fire Valve

Brass Stop Valve

Brass Locking Stop Valve
