Bronze Filter Valve

D7103

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Filter Valves

Inquiry

Product description

Commodity name: Bronze Filter Valve
Commodity ID: D7103

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

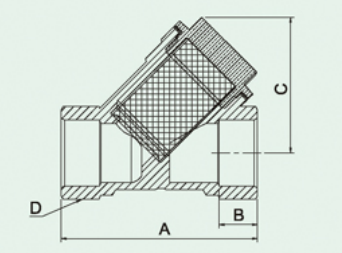

D7103

SIZE	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂
A	60	78	88	99	105	125
B	13	18	18	18	22	20
C	40	50	60	70	72	90
D	26	32.5	39	48	57	67

Keywords： Bronze Filter Valve

Bronze Filter Valve

None
