Brass Check Valve

D7001

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Category：

Check valves

Inquiry

Product description

Commodity name: Brass Check Valve
Commodity ID: D7001

• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228

Technical specilication

• Nominal pressure：1.6MPa

• Working medium：Water.Oil.Steam

• Working temperature：-20℃≤t≤150℃

• Pipe thread to iSO 228

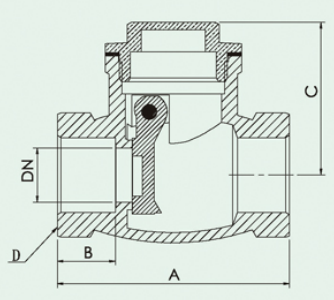

D7001

SIZE	1/2＂	3/4＂	1＂	11/4＂	11/2＂	2＂	21/2＂	3＂	4＂
A	58	69	80	92	100	120	143	158	189
B	14.5	20	18	20	21	24	28	37	37
C	40	49	55	65	70	80	90	100	112
D	27.5	35	41.5	50	58.5	69.5	86	99	124
DN	13.5	18	25	29	34	46	56	66	83

Keywords： Brass Check Valve

None

Brass Check Valve
