Brass Check Valve
D7003
• Nominal pressure：1.6MPa
• Working medium：Water.Oil.Steam
• Working temperature：-20℃≤t≤150℃
• Pipe thread to iSO 228
Category：
- Product description
-
- Commodity name: Brass Check Valve
- Commodity ID: D7003
• Nominal pressure：1.6MPa • Working medium：Water.Oil.Steam • Working temperature：-20℃≤t≤150℃ • Pipe thread to iSO 228
Technical specilication
• Nominal pressure：1.6MPa
• Working medium：Water.Oil.Steam
• Working temperature：-20℃≤t≤150℃
• Pipe thread to iSO 228

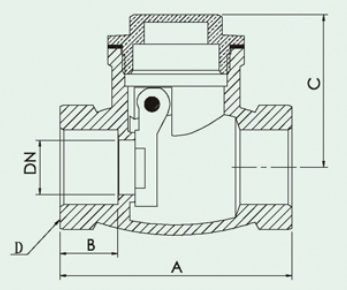

D7003
SIZE 1/2＂ 3/4＂ 1＂ 11/4＂ 11/2＂ 2＂ 21/2＂ 3＂ 4＂ A 52 62 70 84 87 105 B 12.5 14.5 14.5 17 18 20 C 44 46 57 64 65 72 D 27.5 33 40 49 56 68 DN 13.5 19 25 30 38 43.5
Keywords： Brass Check Valve
